Logos Imaging's STENÓS.

STENÓS System

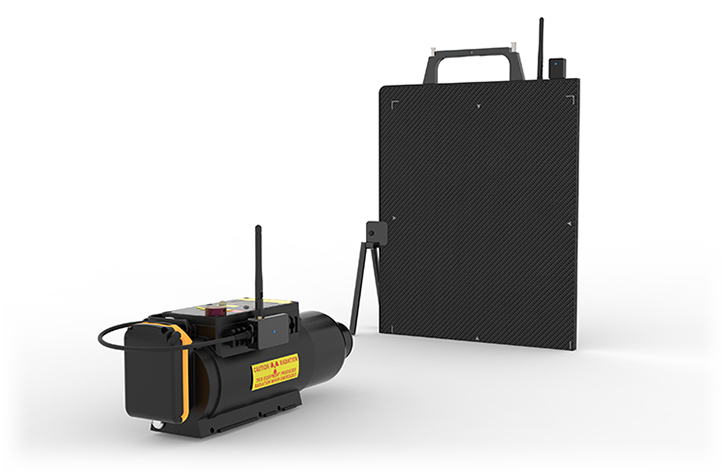

STENÓS Flat Panel System

Logos Imaging’s STENÓS is our lightest, and most rugged large format DR imaging system. We were the first to introduce a glass-free DR imager to the security market with the 6”x8” PRÓTOS, we followed with the 12”x12” XIRÓS, and now the 14”x17” STENÓS with the 3543N panel further continues Logos Imaging’s commitment to the leading edge of DR imaging design. The panel also offers the advantages of built in wireless communications and a removable battery that provides six hours of operation for situations where ultra-portability and 400 m wireless communications are desirable.

Product Fact

The 14"x17" STENÓS has a 3 mm bottom border on one side and six hour battery life.

Specifications

Detector Type Amorphous Silicon with TFT
Detector Area 13.8" x 16.8" (350 x 427 mm)
Pixel Resolution 2,560 x 3,072 pixels
Pixel Pitch 140 µm
Scintillator Gadox
Pixel Depth 16 bits
Dimensions (Panel Only) 15.8" x 18.1" x 0.6" (402.5 x 460.0 x 15 mm)
Weight Without battery - 7.7 lb (3.5 kg)
With battery - 8.6 lb (3.9 kg)
Communications Range Wired: 15 m to 200 m
Wireless: 400 m or up to 1,600 m with long-range wireless option
(using 2.4 GHZ)
