SOSTÓS II Flat Panel System

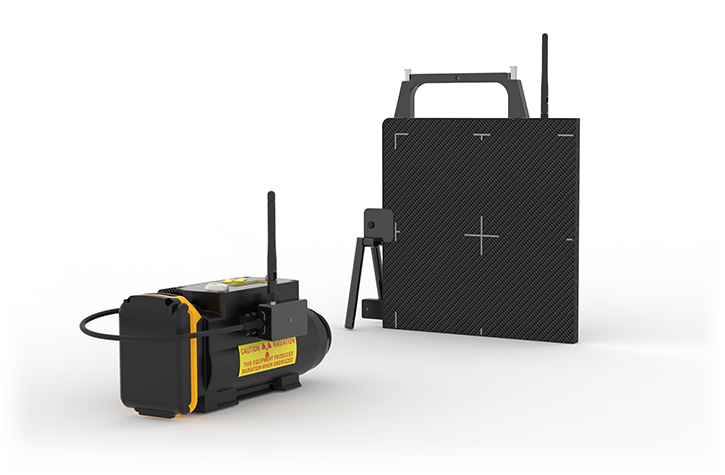

Logos Imaging’s SOSTÓS II system, with the glass-free SOSTÓS II flat imager, is our newest ultra-portable DR imaging system. The SOSTÓS II panel, with near ground-level imaging and 16-bit image clarity, makes it ideally suited for operations where space is limited. At just 2.8 lb and 0.6” thin, this is the smallest and lightest imager offered by Logos Imaging. The versatile SOSTÓS II fits into a custom backpack for easy deployment by a single operator.
Product Fact
The complete SOSTÓS II system in a portable backpack configuration weighs under 11 lbs (5 kg).
Specifications
| Technology | Amorphous Silicon with TFT |
| Pixel Area | 10.1" x 10.1" (258 x 258 mm) |
| Pixel Resolution | 1536 x 1536 pixels |
| Pixel Size | 168 µm |
| Scintillator | Gadox |
| AD Conversion | 16 bits |
| Dimensions (Panel Only) | 11.14" x 11.14" x 0.6" (283 x 283 x 15 mm) |
| Weight | Without battery - 2.4 lb (1.1 kg) With battery - 2.8 lb (1.3 kg) |
| Communications Range | Wireless 150 m with standard antenna Wired 25 m with standard cable reel Additional network options available |
